Norco Search XR A2

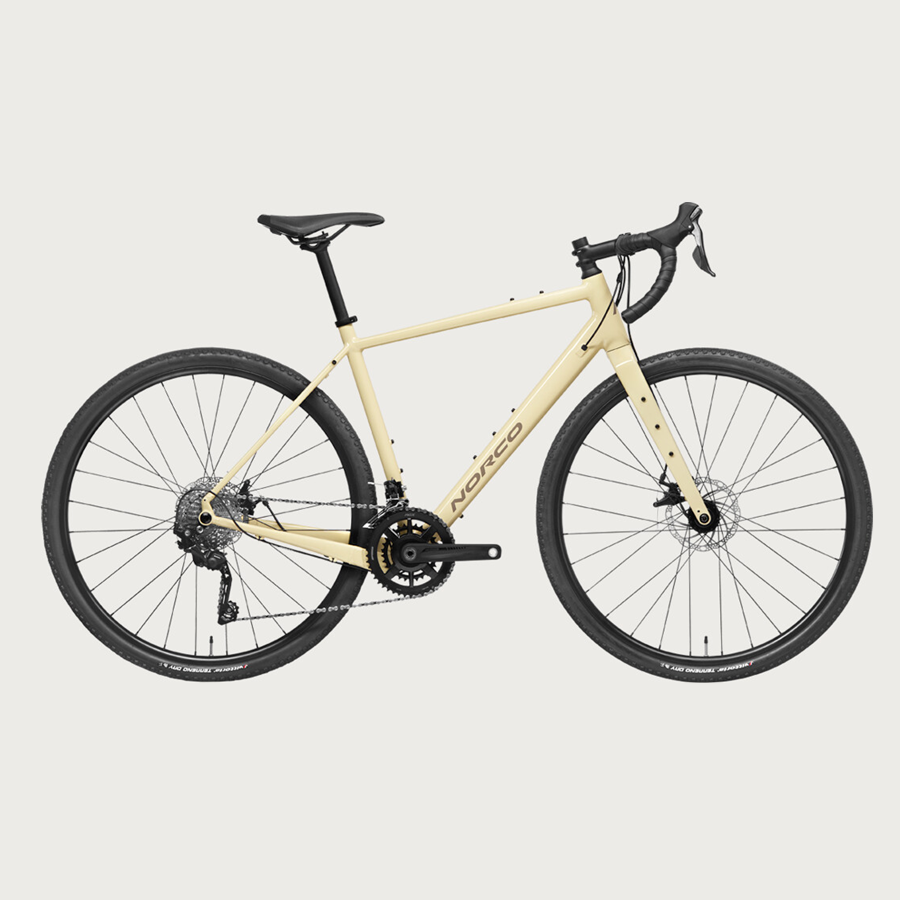

Norco Search XR A2 Gravel Bike

The Norco Search XR A2 Aluminum is ready for every uncharted path and spur-of-the-moment detour. Whether you’ve spent months planning your next big ride or just took a spontaneous right turn, the Search XR A2 is built to excel on mixed terrain and long-distance journeys. With its versatile frame, generous tire clearance, and rugged componentry, it's made for off-road adventure, bikepacking, and beyond.

Why You'll Love It

• Comfortable Aluminum Frame: Engineered for long rides, reducing fatigue without compromising performance.
• Optimized Geometry: Specific geometries for drop bar, flat bar, and suspension configurations provide tailored handling and comfort.
• Adventure-Ready Design: Slightly slacker and longer than a traditional gravel bike for extra confidence off-road.
• Internal Cable Routing: Keeps cables protected and the frame looking clean.
• Massive Tire Clearance: Fits up to 50mm tires for added comfort and control over rough terrain.
• Accessory-Friendly: Stealth mounts for bags, racks, and extra water bottles.

Technical Specifications

Drivetrain

• Rear Shifter: Shimano Tiagra ST-4700
• Rear Derailleur: Shimano GRX RD-RX400 Shadow RD+
• Front Shifter: Shimano Tiagra ST-4700
• Front Derailleur: Shimano GRX FD-RX400
• Crankset: FSA Omega Modular 46/30 AGX+
  - 170 mm (Sizes 49, 52)
  - 172.5 mm (Sizes 55, 58)
  - 175 mm (Size 61)
• Bottom Bracket: FSA BB386EVO for BSA
• Cassette: Shimano CS-HG50, 11–36T, 10-speed
• Chain: KMC X10

Brakes

• Front Brake: Tektro MD-C550 Dual-Piston Mechanical Disc, Resin Pads
• Front Rotor: Tektro 6-Bolt, 160 mm
• Rear Brake: Tektro MD-C550 Dual-Piston Mechanical Disc, Resin Pads
• Rear Rotor: Tektro 6-Bolt, 160 mm
• Brake Levers: Shimano Tiagra ST-4700

Components

• Handlebar: Norco Super Flare Aluminium, 16° flare
  - 40 cm (Size 49)
  - 42 cm (Size 52)
  - 44 cm (Size 55)
  - 46 cm (Sizes 58, 61)
• Stem: Norco SL Aluminium, 31.8 mm clamp
  - 70 mm (Size 49)
  - 80 mm (Size 52)
  - 90 mm (Size 55)
  - 100 mm (Size 58)
  - 110 mm (Size 61)
• Seatpost: Aluminium, 27.2 mm
• Headset: Sealed cartridge bearing
• Headset Spacers: 3 × 10 mm aluminium
• Saddle: Selle Royal Gravel with cutout
• Grips: Griptacular shockproof tape
• Pedals: City resin
• Seatpost Clamp: Aluminium, 31.8 mm

Wheels

• Front Hub: 12x100 mm thru-axle, 6-bolt
• Rear Hub: 12x142 mm thru-axle, HG, 6-bolt
• Rims: Alloy pinned, 28H, 23 mm inner width
• Front Tire: Vittoria Terreno Dry 700x38c
• Rear Tire: Vittoria Terreno Dry 700x38c
• Skewers:
  - Front: Tooled 12x100 mm thru-axle
  - Rear: Tooled 12x142 mm thru-axle
• Spokes/Nipples: Sapim Leader, black
• Valves: Standard
• Rim Tape: Nylon
